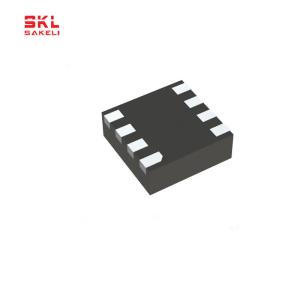

MAX15062AATA+T Power Management ICs Buck Switching Regulator Synchronous Step-Down DC-DC Converters Package 8-WFDFN

Applications

● Process Control

● Industrial Sensors

● 4–20mA Current Loops

● HVAC and Building Control

● High-Voltage LDO Replacement

● General-Purpose Point-of-Load

Benefits and Features

● Eliminates External Components and Reduces

Total Cost

• No Schottky—Synchronous Operation for High

Efficiency and Reduced Cost

• Internal Compensation

• Internal Feedback Divider for Fixed 3.3V, 5V

Output Voltages

• Internal Soft-Start

• All-Ceramic Capacitors, Ultra-Compact Layout

● Reduces Number of DC-DC Regulators to Stock

• Wide 4.5V to 60V Input Voltage Range

• Fixed 3.3V and 5V Output Voltage Options

• Adjustable 0.9V to 0.89 x VIN Output Voltage Option

• Delivers Up to 300mA Load Current

• Configurable Between PFM and Forced-PWM

Modes

● Reduces Power Dissipation

• Peak Efficiency = 92%

• PFM Feature for High Light-Load Efficiency

• Shutdown Current = 2.2µA (typ)

● Operates Reliably in Adverse Industrial Environments

• Hiccup-Mode Current Limit and Autoretry Startup

• Built-In Output Voltage Monitoring with Open-Drain

RESET Pin

• Programmable EN/UVLO Threshold

• Monotonic Startup into Prebiased Output

• Overtemperature Protection

• High Industrial -40°C to +125°C Ambient Operating

Temperature Range/-40°C to +150°C Junction

Temperature Range

• Battery protectionWhy buy from us >>> Fast / Safely / Conveniently
• SKL is a Stock keeper and trade company of Electronic components .Our branches office include China, Hong Kong, Sigapore , Canada . Offer business, service, resourcing and information for our global member.
• Goods are ensured the highest quality possible and are delivered to our customers all over the world with speed and precision.

How to buy >>>
• Contact us by email & sent your inquire with your Transport destination .
• Online chat, the commissioner would be responded ASAP.

Service >>>
• Forwarder Shipment to world-wide, DHL ,TNT ,UPS,FEDEX etc. buyer don`t need to worry about shipping problem
• We will try to respond as quickly as possible. But due to time zone difference, please allow up to 24 hours to get your mail replied. The products were tested by some devices or software, we ensure that there is no quality problems.
• We are committed to providing fast, convenient and safe transportation service to global buyer.

MAX15062AATA+T Power Management ICs Buck Switching Regulator Synchronous Step Down DC DC Converters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	60V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Current - Output	300mA
Frequency - Switching	500kHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WFDFN
Supplier Device Package	8-TDFN (2x2)
