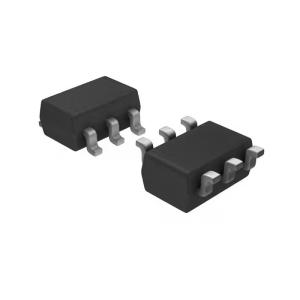

ADS1000A1QDBVRQ1 Integrated Circuit IC Chip
Low-Power 12-Bit Analog-to-Digital Converter Package SOT-23-6
| Product Status | Active | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | 128 | |
| Number of Inputs | 1 | |
| Input Type | Differential, Single Ended | |
| Data Interface | I²C | |
| Configuration | PGA-ADC | |
| Ratio - S/H:ADC | - | |
| Number of A/D Converters | 1 | |
| Architecture | Sigma-Delta | |
| Reference Type | Supply | |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | |
| Features | PGA, Selectable Address | |
| Operating Temperature | -40°C ~ 125°C | |
| Package / Case | SOT-23-6 | |
| Supplier Device Package | SOT-23-6 | |
| Mounting Type | Surface Mount |
APPLICATIONS
• Automotive Head Units
• Automotive Battery Management Systems
SOT-23 Package
• Low Current Consumption: Only 90 μA
• Integral Nonlinearity: 1 LSB Max
• Single-Cycle Conversion
• Programmable Gain Amplifier
Gain = 1, 2, 4, or 8
• 128-SPS Data Rate
• I 2C Interface with Two Available Addresses
• Power Supply: 2.7 V to 5.5 V
